55inch open frame lcd display with brightness ratings as high as 3,000 nits, Heyong brigtness open frame lcd display shine bright in direct sunlight—making them the ideal solution for outdoor enclosures and window-facing applications.55 inch open frame lcd monitor customized brightness: 1,500nit 2,000nit 2,500nit 3,000nit,5000nit
Key Features
High Brightness: 5000nits
View in direct sunlight
LED Backlight
Low Power Consumption
Slim Bezel
High Color Saturation
BL MTBF: 50,000 hours
High Tni 110 。C Liquid Crystal
Blacken defect free

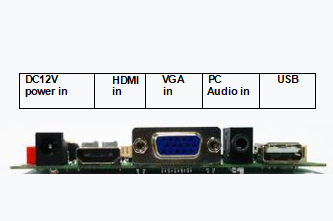

AD board with HDMI/VGA/ USB interface
Industrial grade power supply unit
Ambient auto brightness sensor
Plug and play

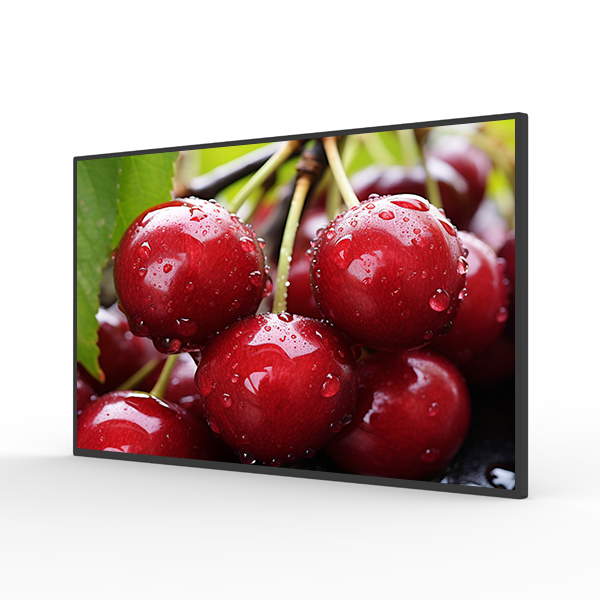

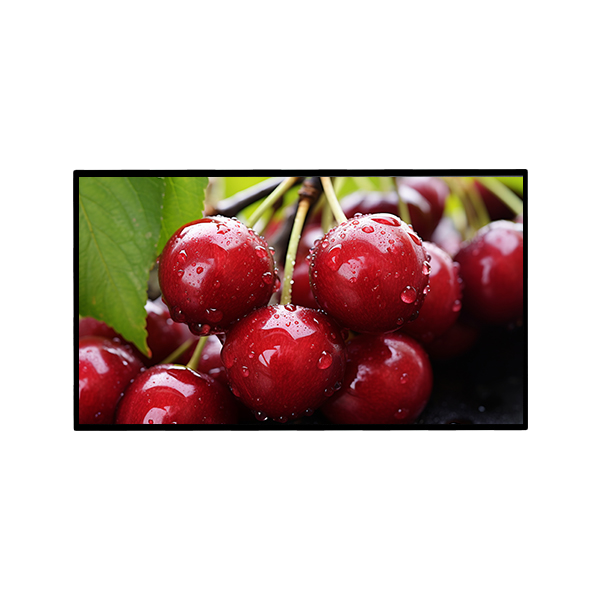

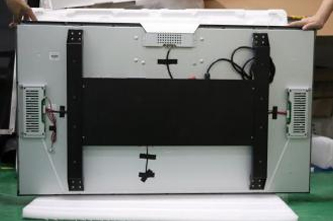

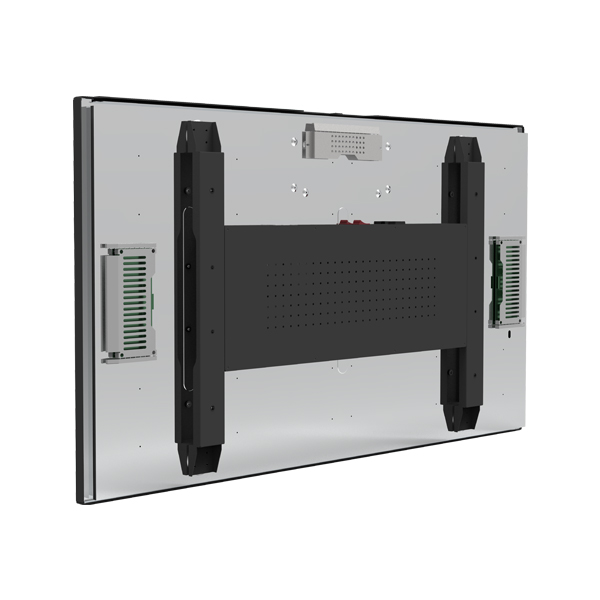

Physical Photosa
| Model Name | HYKT550-D50-PD |
| Description | 55” 5000nits industrial grade open frame LCD |
| Screen Size | 55” |
| Display Area(mm | 1209.6(H)x680.4(V) |
| Brightness | 5000cd/m2 |
| Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1400:1 |
| Pixel Pitch(mm) | 0.63(H)x0.63(V) |
| Viewing Angle | 178° (H),178° (V) |
| Color Saturation(NTSC) | 76% |
| Display Color | 16.7M |
| Response Time(Typical) | 9ms |
| Panel Interface | VDS |
| AD Board interface | HDMI/VGA/USB |
| Input Power | AC90-132V/180-264V |
| Power consumption | 320W |

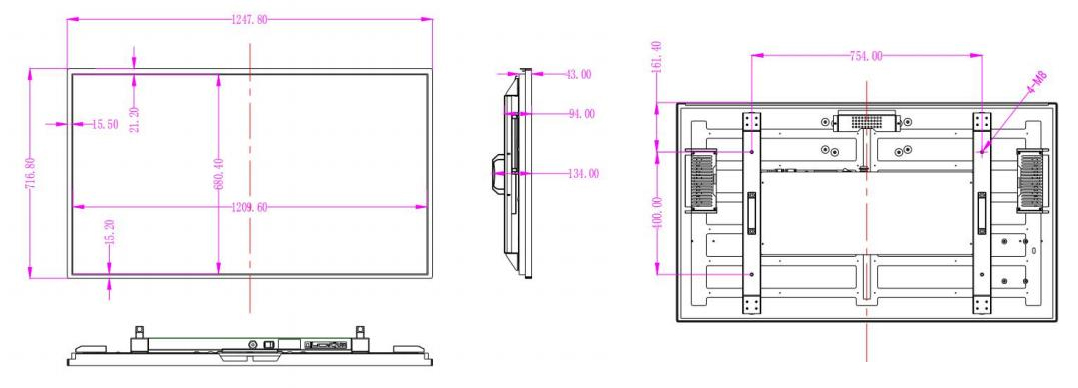

| Dimensions(mm) | 1247.8X716.8X 94 |
| Weight(Net) | 19kg |
| Mounting | VESA 400X754mm |
| Operating Temperature | 0°C - 50°C |
| Storage Temperature | -20°C - 60°C |
